GHE's Full stainess steel heat exchanger is widely used in milk pasteurization,beer cooling,drinking water cooling, fruit fluid cooling and so on.GHE have rich experience and know how to design a accurate sanitary plate heat exchanger based on customer's requirement.

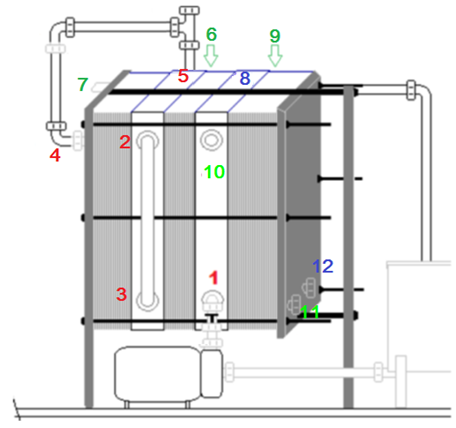

Milk Pasteurization PHE (MHE)/Three stages
![T2M6OGBGTGPTC@%O9KE{]0Z.png](/upLoad/image/20170617/14976655034638364.png "T2M6OGBGTGPTC@%O9KE{]0Z.png")
Sanitary PHE Specification

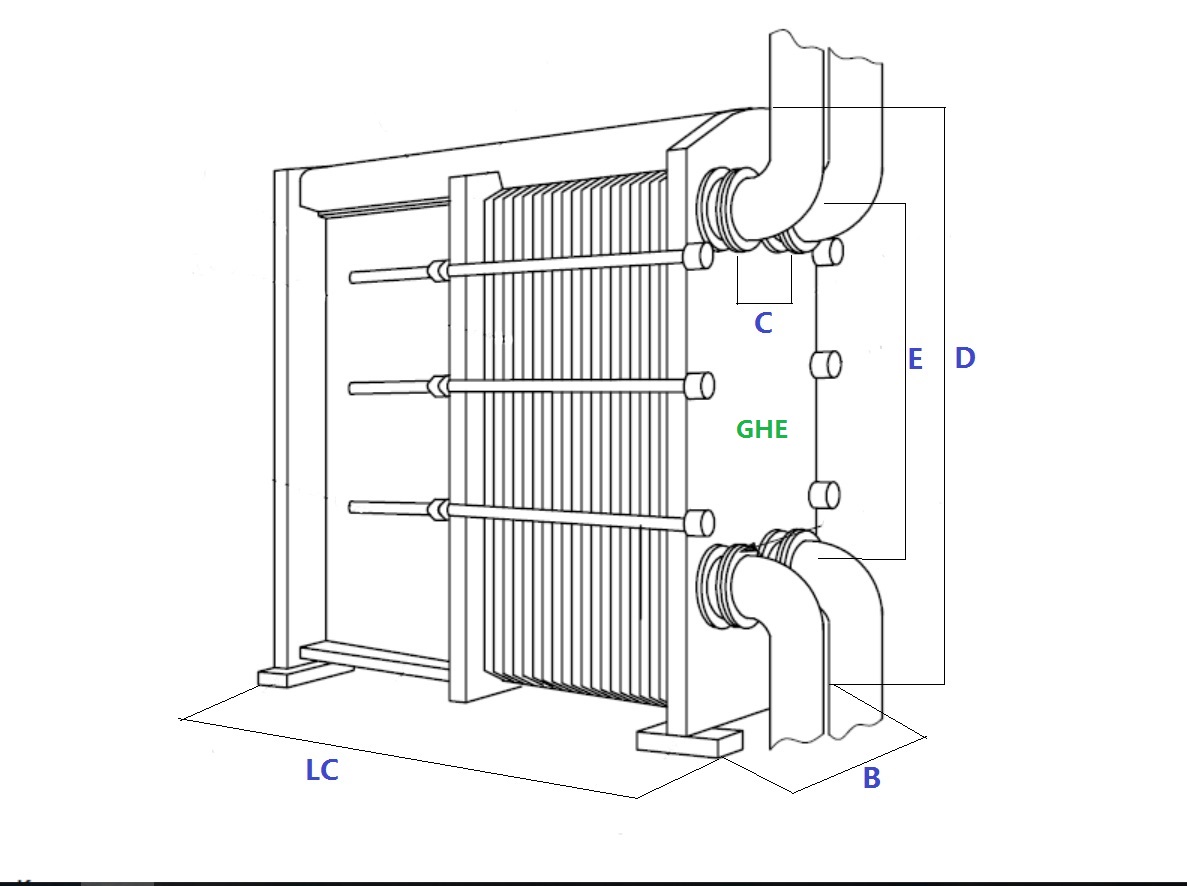

Model | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | MAX. LC (mm) | Connection Size (mm) | Exchange area (m2) | Max Plate Qty （Piece） | Max. volume flow (m3/h) | Designed Pressure (Mpa) |
G32 | N(2.5+X) | 180 | 60 | 480 | 357 | 500 | 32 | 0.032 | 95 | 18 | 1.6 |
G60B/G60M | N(2.0+X) N(3.0+X) | 320 | 140 | 920 | 640 | 1200 | 50 | 0.15 | 250/203 | 36 | 1.6 |
G100B/G100M | N(2.55+X) N(3.95+X) | 470 | 225 | 1069 | 719 | 1600 | 100 | 0.25 | 278/180 | 140 | 1.0/1.6/2.5 |
GL100B | N(2+X) | 480 | 225 | 1888 | 1338 | 3000 | 100 | 0.5 | 400 | 140 | 1.0 |
G150B/G150M | N(2.5+x) N(3.95+X) | 610 | 298 | 1815 | 1294 | 3000 | 150 | 0.65 | 600 | 360 | 1.0/1.6/2.5 |
N* is plate number
X* is plate thickness
*Sanitary Design:Full stainless steel ,include frame ,bolts ,connections and food range gasket.
*Dimension of sanitary PHE will make a little difference from common models.
GHE's Full stainess steel heat exchanger is widely used in milk pasteurization,beer cooling,drinking water cooling, fruit fluid cooling and so on.GHE have rich experience and know how to design a accurate sanitary plate heat exchanger based on customer's requirement.
Milk Pasteurization PHE (MHE)/three stages:
